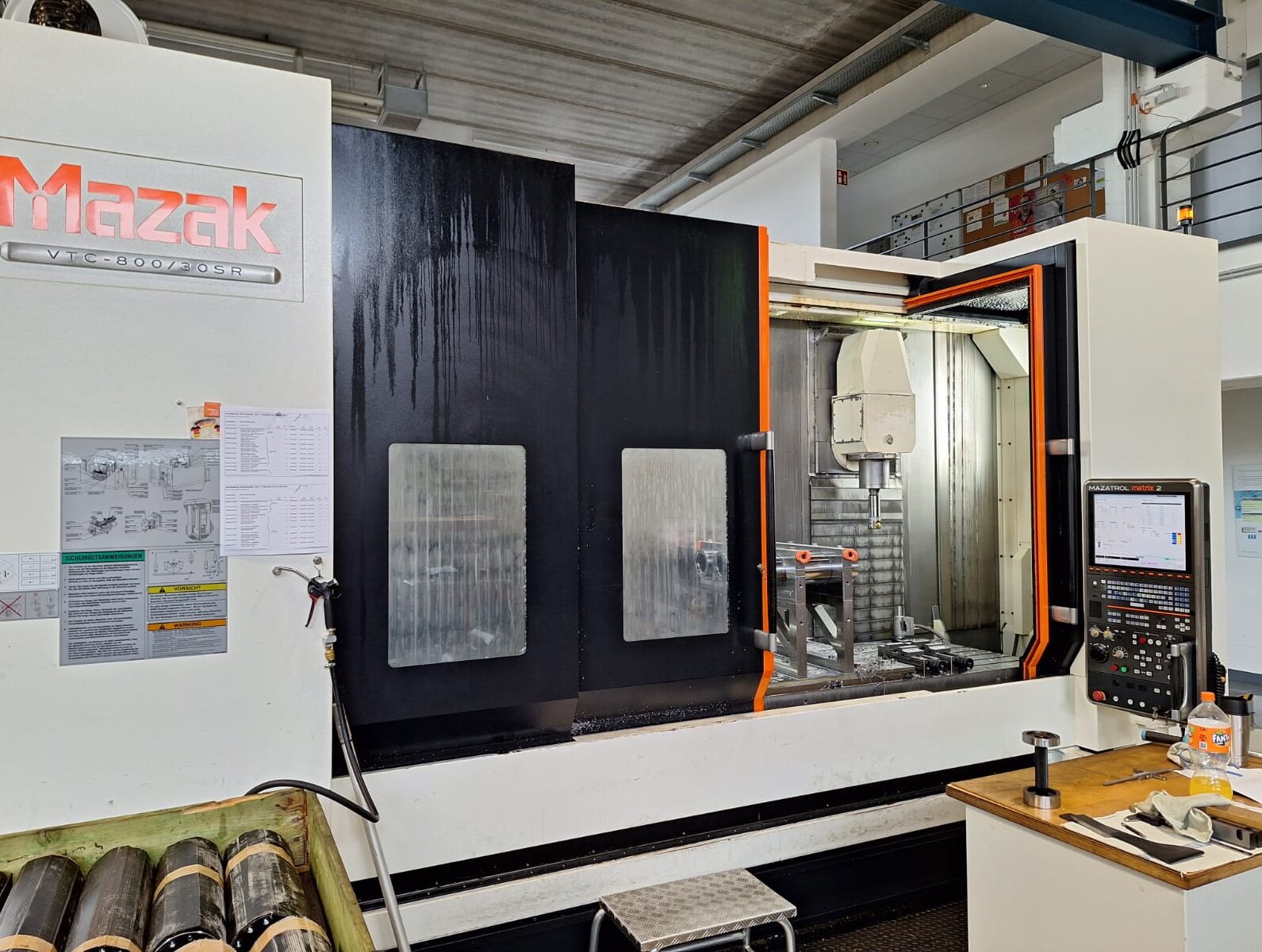

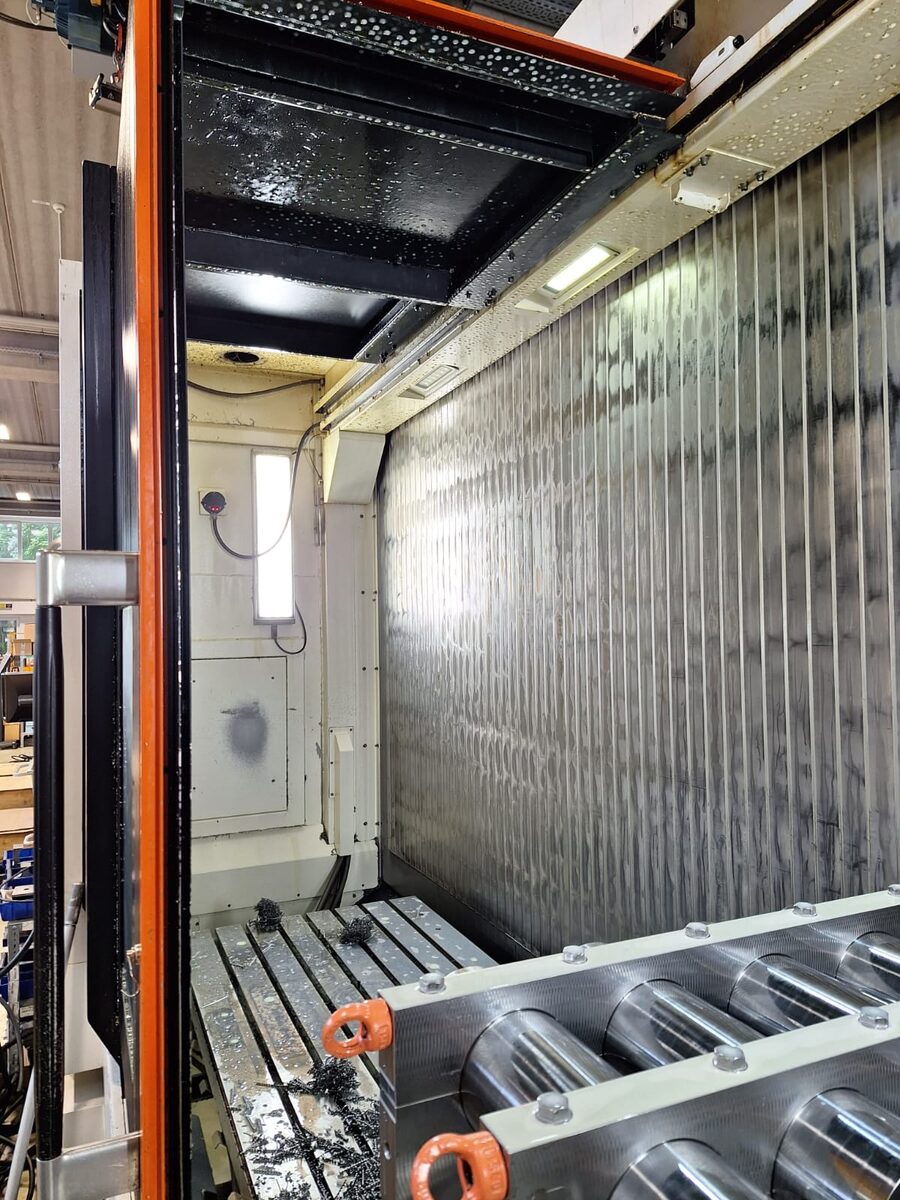

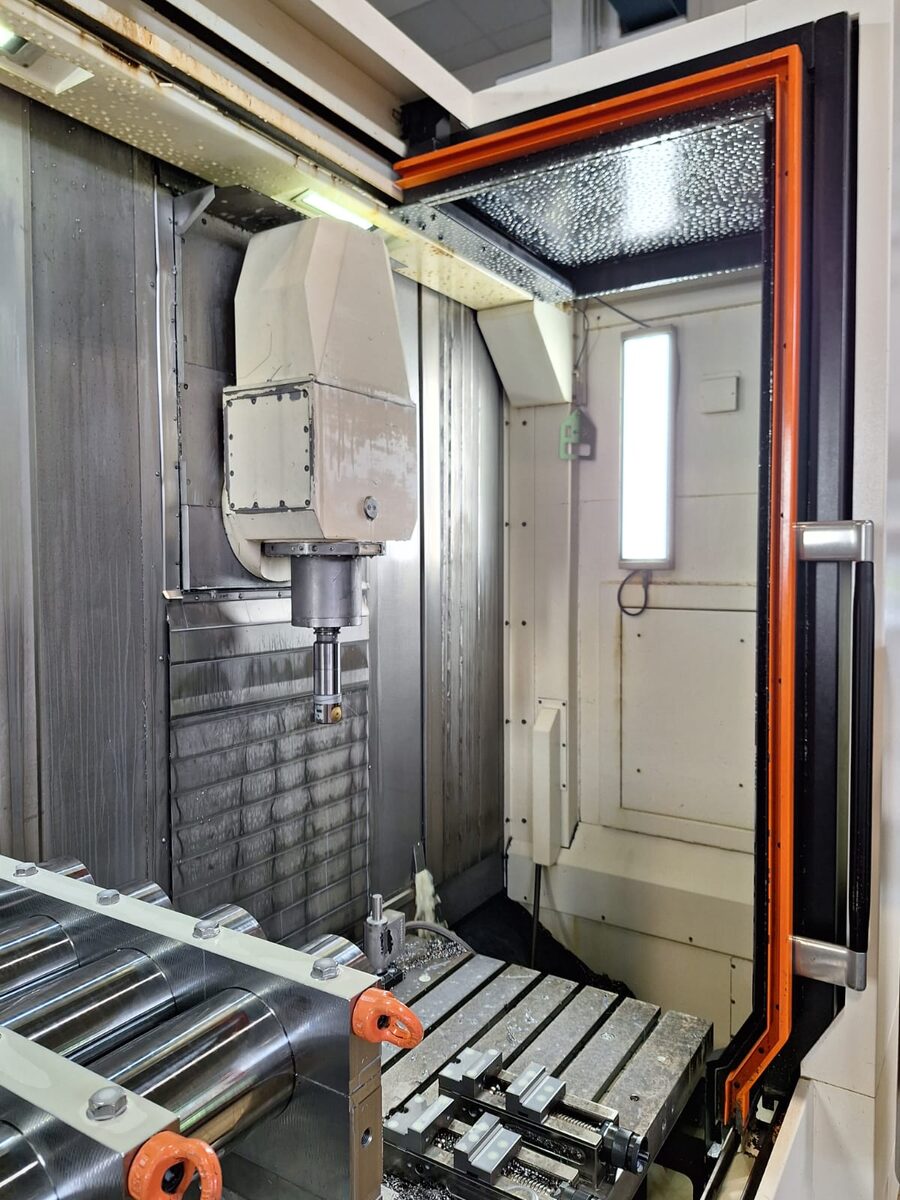

manufacturer | Mazak |
model | VTC 800/30 SR |
year | 2012 |

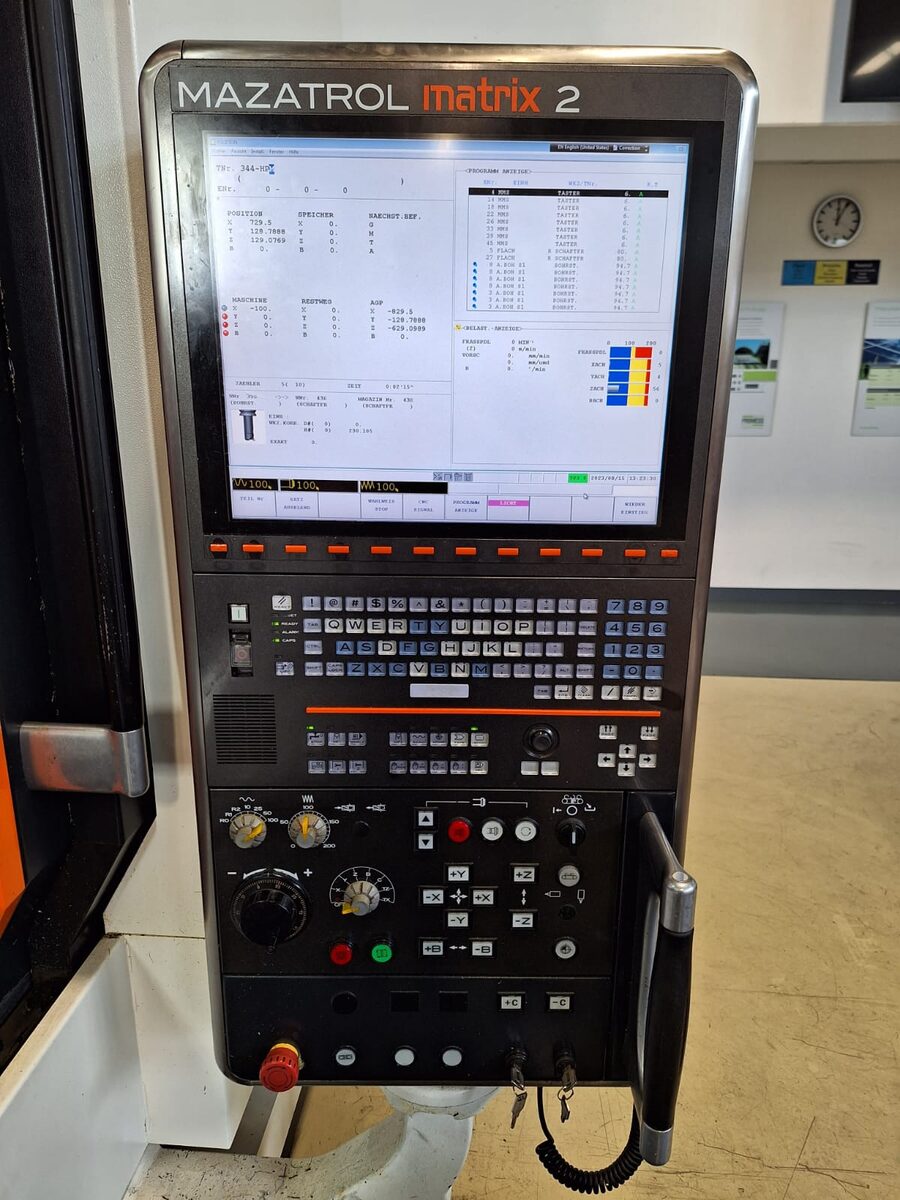

control | Mazatrol Matrix 2 |
travel X/Y/Z | 3000x 800 x 720 mm |
rapid traverse X/Y/Z | 50000 / 50000 / 50000 mm/min |
table size | 3500 x 800 mm |
main spindle | speed: 18.000 min-1 motor power: 26 kW |
number of tool places | 48 |
tool taper | SK 40 |
Options: | |
NC table Kitagawa (4th axis) | |
Renishaw touch probe | |
partition wall | |
High pressure coolant through the spindle 70 bar | |
Chip conveyor Mayfran Consep 2000 II |
manufacturer | Mazak |
model | VCN 510C |
year | 2006 |
control | Mazatrol 640M |
travel X/Y/Z | 1050x 510 x 510 mm |
rapid traverse X/Y/Z | 36000 / 36000 / 36000 mm/min |
table size | 1300 x 550 mm |
main spindle | speed: 12.000 min-1 motor power: 11 kW |
number of tool places | 30 |
tool taper | SK 40 |
Options: | |
High pressure coolant through the spindle 15 bar | |
Electr. Handwheel | |
Chip conveyor |

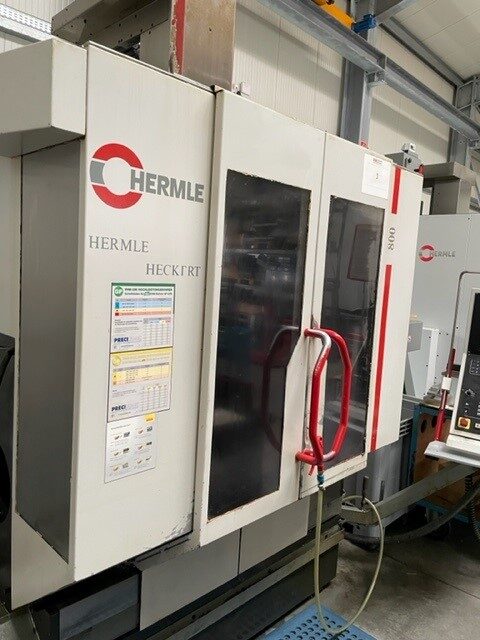

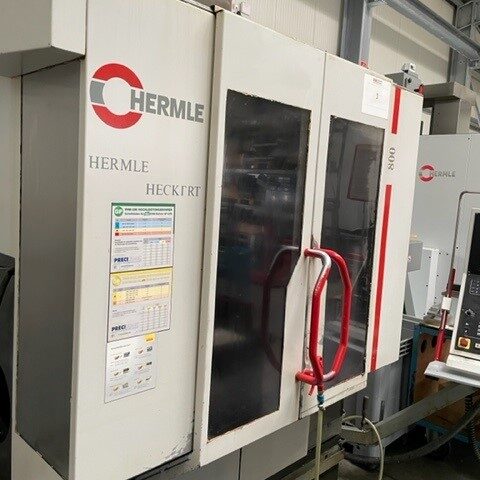

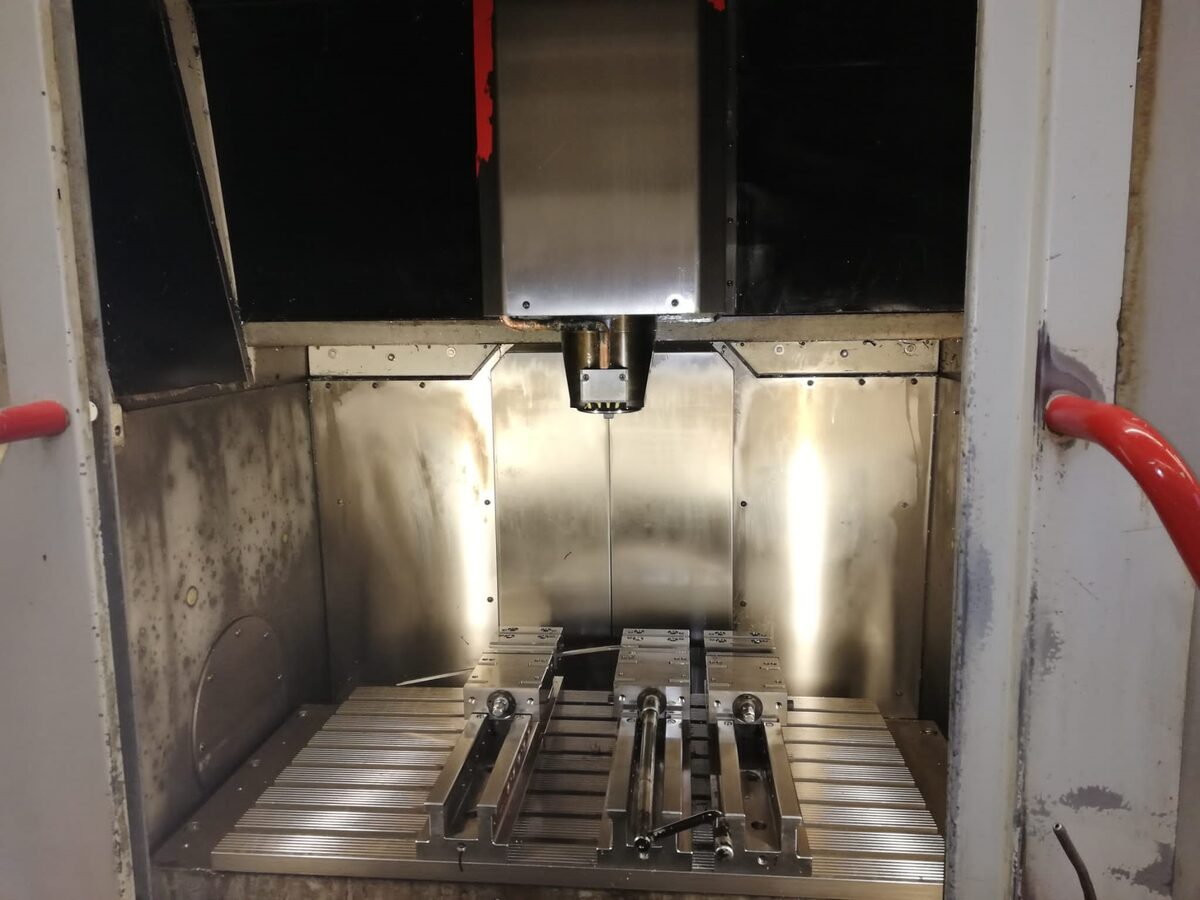

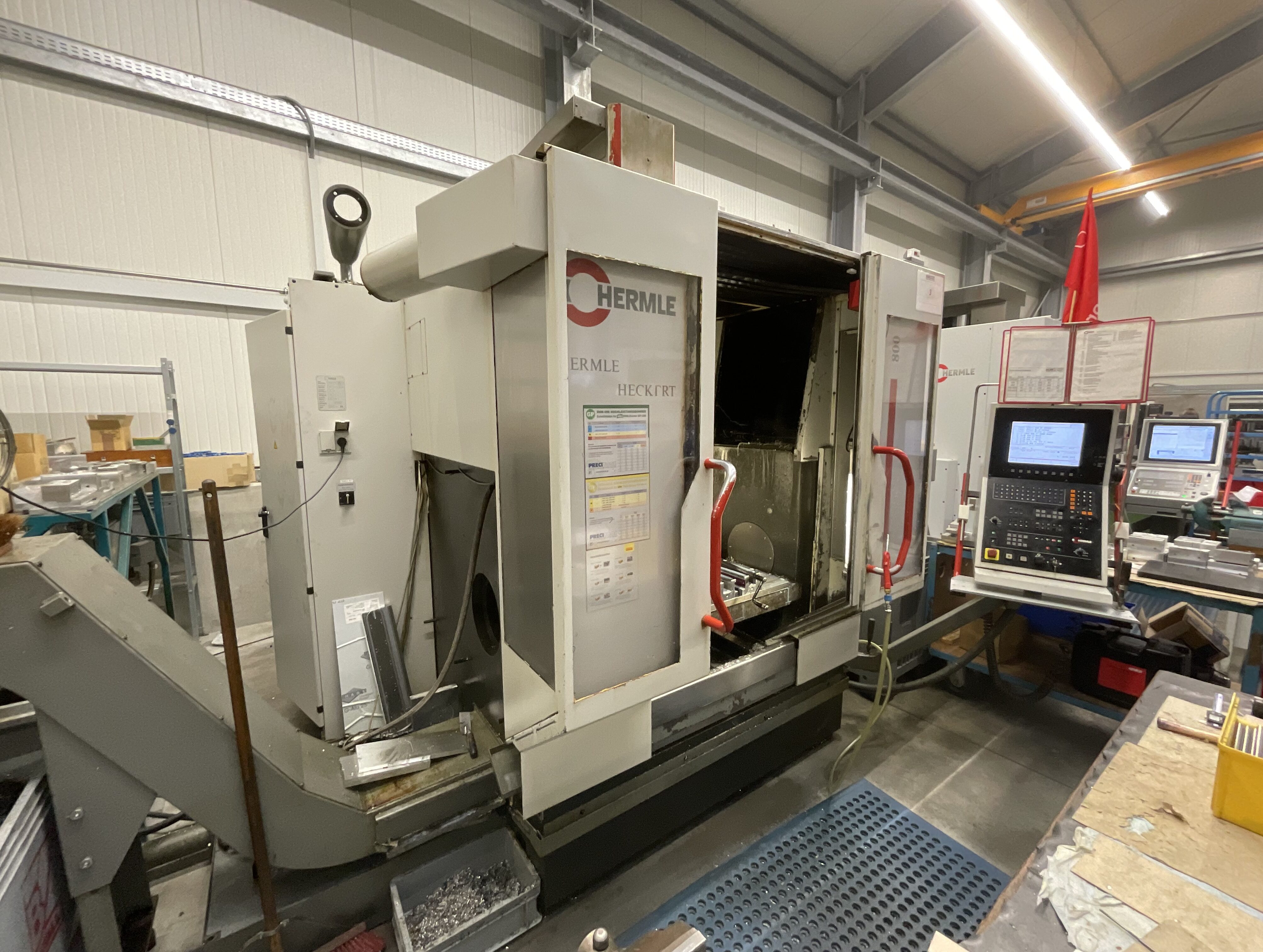

manufacturer | Hermle |
model | C800 V |
year | 1996 |

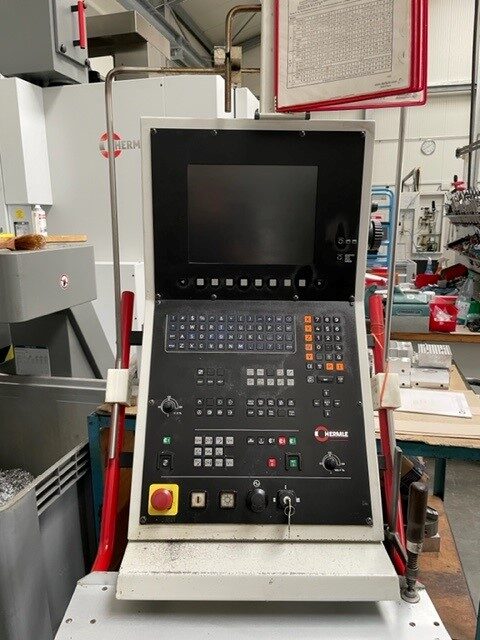

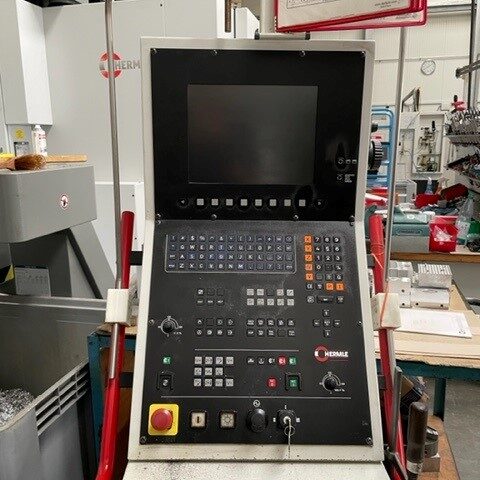

control | TNC 430 |
travel X/Y/Z | 800 x 600 x 500 mm |
rapid traverse X/Y/Z | 30000 / 30000 / 30000 mm/min |
table size | 1000 x 560 mm |
main spindle | speed: 8.000 min-1 motor power: 10 kW |
number of tool places | 30 |
tool taper | SK 40 |
Options: | |
High pressure coolant through the spindle 3 bar | |
Heidenhain touch probe | |

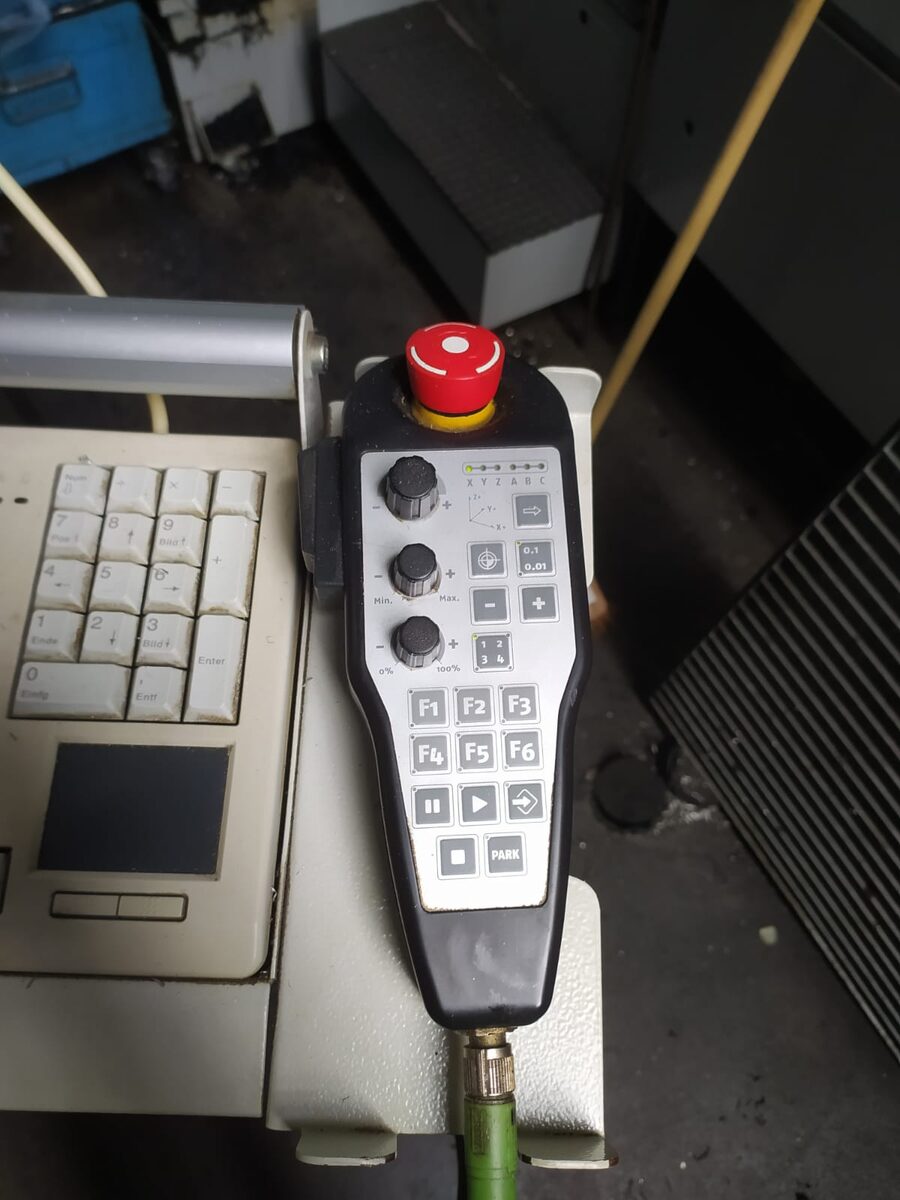

Electr. Handwheel | |
Chip conveyor |
